Feed Pellet Mill

Feed Pellet Mill Machine is widely used by people who breed animals or people who are engaging in feed pellet production line for business. It can make pelleted feed for chicken, geese, pigeon, rabbit, cow, sheep, cattle, pig, rabbits, and so on. The reason why they make feed pellets is that pellets are a balanced combination of different kinds of nutrition for the better growth of livestock, poultry and other animals. (Read more: Animal Feed Pellet Mill Price >>)

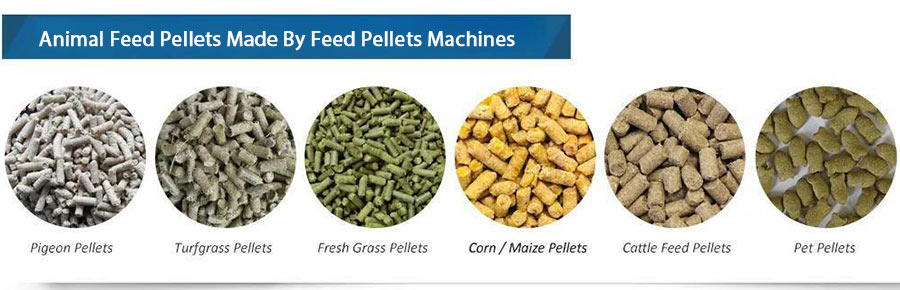

animal feed pellets
Animal Feed Pellets

Raw Materials to Make Animal Feed Pellets: The raw material can be used to make animal feed pellets by feed pellet mill has corn/maize, alfalfa, wheat bran, grass, rice, beans, oil cake, etc. Usually, large size raw materials should be pulverized by hammer mill. Protein or other nutrients can also be added to the raw powder.

In these years of development in anima feed pellet industry, the technology of animal feed pellet mill has been mature and advanced. In today's market, the most widely used feed pellet mill has Flat Die Feed Pellet Mill, Small Feed Pellet Plant and Ring Die Feed Pellet Mill. Below we will take a simple view about the three types of feed pellet mill. If you are interested in it or want to know its price and parameters, please contact us directly without hesitation!



how to start your own production line with best business plan

Flat Die Feed Pellet Mill - Small Scale

Flat die feed pellet mill is small scale feed pellet machine that is designed for small scale feed pellet production. Various power sources are available: electric motor, diesel engine, PTO, gasoline engine, you can choose according to your own needs. The feed pellet by flat die feed pellet machine can be adjusted into different size through different models of die diameters. And, feed pellet for livestock by flat die feed pellet machine can be manufactured through both different compression ratios and raw materials properties. (Related post: Livestock Feed Machinery >>)

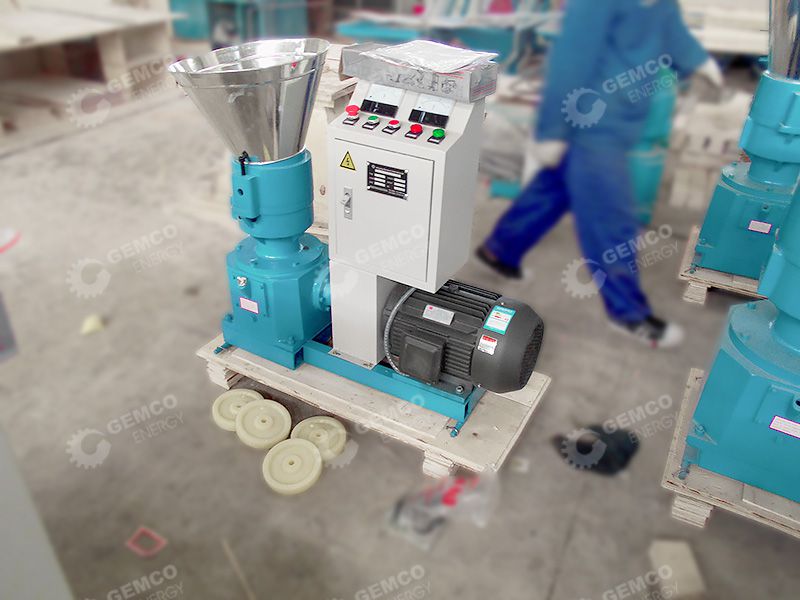

Electric Feed Pellet Mill (ZLSP B/C series)
Electric Feed Pellet Mill (ZLSP B/C series)

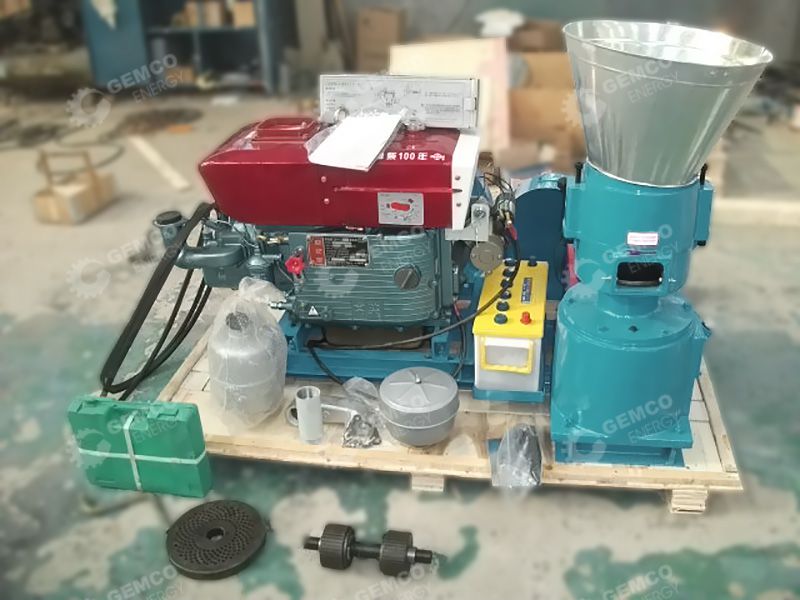

Diesel Feed Pellet Mill (ZLSP A series)
Diesel Feed Pellet Mill (ZLSP A series)

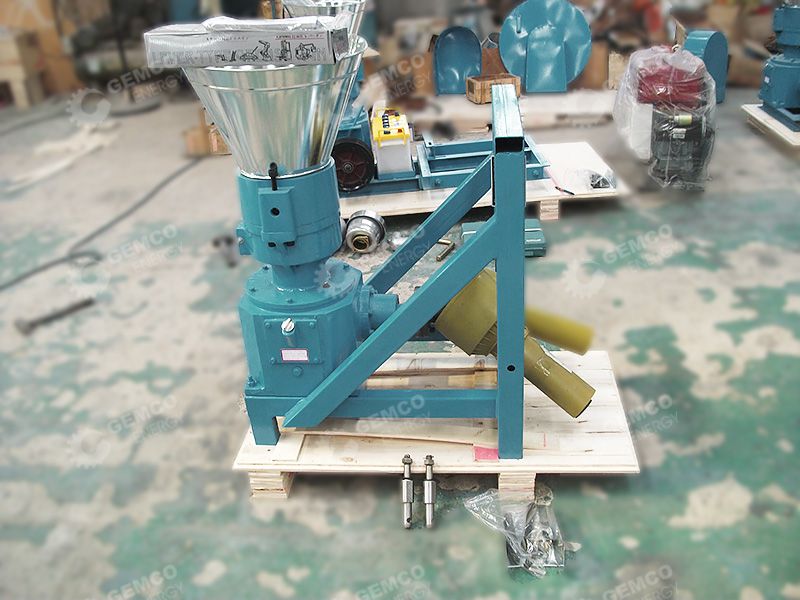

PTO Feed Pellet Mill (ZLSP P series)
PTO Feed Pellet Mill (ZLSP P series)

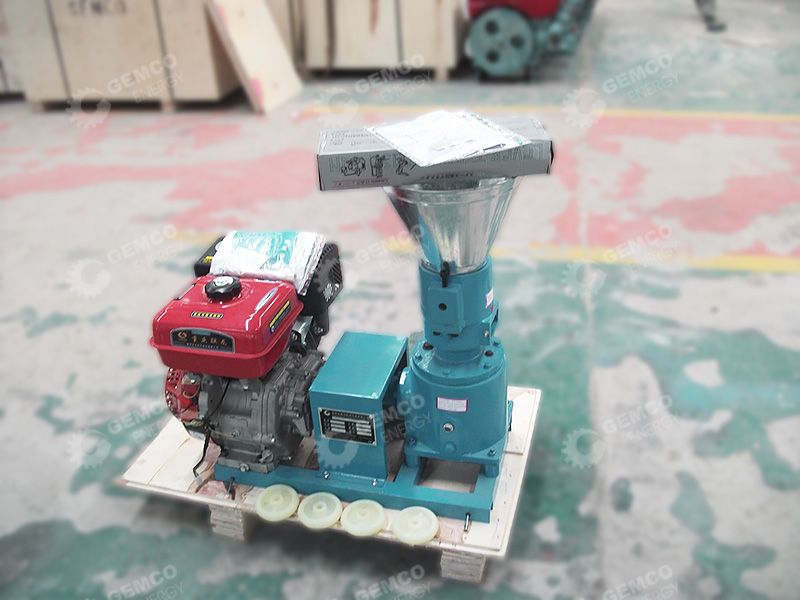

Gasoline feed pellet mill (ZLSP Q series)
Gasoline feed pellet mill (ZLSP Q series)


Due to the compact structure, beautiful appearance, high output, low power consumption, convenient use, reliable working performance, etc., flat die pellet mill has been the most popular animal feed pellet maker for animal farmers or small scale animal feed pellet produciton line. (Read more: Chicken Feed Pellet Machine for Sale in Nigeria >>)


Flat Die Feed Pellet Mill Technical Data

Model Power Capacity (kg/h) G.W./N.W. Packing Size
ZLSP-D 120B 3kw (3phase)/2.2 kw (Single phase) 60-100 80/100 750x320x680
ZLSP-D 150B 4 kw (3phase) 90-120 95/110 800x450x700
ZLSP-D 200B 7.5 kw (3phase) 200-300 200/230 1650x820x1200
ZLSP-D 230B 11 kw (3phase) 300-400 290/320 1050x480x930
ZLSP-D 260B 15 kw (3phase) 400-600 320x360 1180x540x1000
ZLSP-D 300B 22 kw (3phase) 600-800 350/380 1240x540x950
ZLSP-D 150C 4 kw (3phase) 90-120 105/125 1000x480x780
ZLSP-D 200C 7.5 kw (3phase) 200-300 210/230 1050x550x830
ZLSP-D 230C 11 kw (3phase) 300-400 290/320 1200x560x950
ZLSP-D 260C 15 kw (3phase) 400-600 340/370 1240x580x1000
ZLSP-D 300C 22 kw (3phase) 600-800 425/465 1300x620x1100
ZLSP-D 120A 8 Hp 60-100 120/140 900x500x730
ZLSP-D 150A 8 Hp 90-120 180/220 1000x500x750
ZLSP-D 200A 15 Hp 200-300 210/240 1460x750x900
ZLSP-D 230A 22 Hp 300-400 280/310 1560x850x1000
ZLSP-D 260A 30 Hp 400-600 330/360 1200x500x1070
ZLSP-D 300A 55 Hp 600-800 410/450 1220x600x1000
ZLSP-D 150P ≥8 Hp 90-120 105/125 900*540*1020
ZLSP-D 200P ≥15 Hp 200-300 210/230 1000*540*1020
ZLSP-D 230P ≥22 Hp 300-400 290/320 1000*540*1020
ZLSP-D 260P ≥30 Hp 400-500 340/370 1050*540*900
ZLSP-D 300P ≥55 Hp 500-600 425/465 1100*540*1000

inquire about the price and cost

If you don't know which one fits your needs most, please contact us directly. Our professional engineers will details more information for your references. Maybe, most of you concern most about the price. Here, we promise our flat die feed pellet making machine is at lowest factory price. Our factory GEMCO is the orginal animal feed pellet machine manufacturer, so there are no price difference by middle businessman. Please rest assured to buy. Any questions, contact us immediately!


Flat Die Feed Pellet Mill Advantages

factory-price-flat-die-pellet-mill
  • The roller and die: flat die adopts high quality wear-resisting alloy steel and processed by special heat treatment.
  • The hopper adopts thickening material to help strengthen it.
  • The main box adopts high quality welding structure to have low noise and shock-absorbing ability.
  • The electrical components adopt famous CHINT AND SIEMENS brands and processed by parkerising, acid pickling and spraying plastics. It is also designed with radiation structure.

Small Feed Pellet Plant

STLP 300/STLP400 small feed pellet plant is designed with grinding machine, mixing machine, screw conveyor, silo, pellet mill machine and pellet cooler. It is a small scale complete animal feed pellet mill plant that is suitable for both household and commercial. If you are planning to start animal feed pellet making business, it is a BEST choice since it requires less investment cost, takes small space and has the full functions for animal feed pellet production!

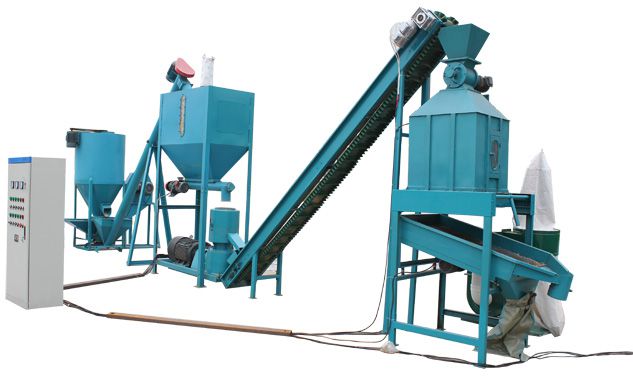

small feed pellet plant

Small Scale Animal Feed Pellet Production Line

This feed pellet plant can produce 2~8mm of feed pellets with 600-1000kg/h pellet output capacity. The pellets are suitable for feeding pig, cattle, sheep, rabbit, chicken, duck, geese, fish and other animals.

The grinding machine can crush the maize and soya bean meal into fine powder, then the fine powder can mix with the wheat bran, bone meal, microelement, vitamin and other raw materials to make the complete feed mesh. By using our ZLSP feed pellet mill, the mesh is made into feed pellets. The feed pellets can be packed directly after the screening and cooling. (Latest order: Small Chicken Feed Mill Plant Exported to Tanzania >>)

STLP300/400 Small Feed Pellet Plant Technical Parameters

Model Power
Kw
Capacity
kg/h
Weight
kg
Dimension
mm
STLP300 45.7 600-800 2464 15000*4000*4500
STLP400 61.2 800-1000 2902 15000*4000*4500

inquire about the price and cost

Ring Die Feed Pellet Mill - Large Scale

This animal feed pellet mill is mainly consist of feeding device (screw feeder), hardening and tempering device (conditioner), face plate, press chamber transmission system, overload protection and electrical control system. It can also make feeds for animals such as chicken, cattle, pig, sheep etc, from raw material sorghum, maize, soya meal, rice and wheat etc.

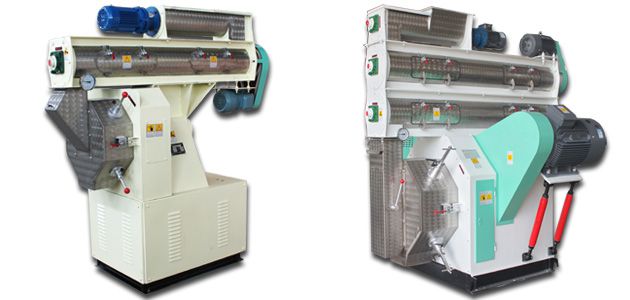

ring die feed pellet mill

Large Feed Pellet Mill Machine

Ring die feed pellet machine is more suitable for large scale animal feed pellet production, usually 1~15TPH. For large scale feed pellet mill plant, we provide equipment selection, factory layout design, estimated cost, etc..

Ring Die Feed Pellet Mill Technical Data

Model BPM25 BPM35 BPM42 BPM520
Capacity 1.0-2.0t/h 3.0-5.0t/h 6.0-10.0t/h 8.0-15t/h
Main motor power 11kw*2 30kw*2 55kw*2 75kw*2
Feeding motor power 0.75kw 0.75kw 0.75kw 0.75kw
Conditioner motor power 2.2kw 2.2kw 5.5kw 5.5kw
Diameter of ring die 250 350 420 520
Diameter of final wood pellet 2-10 2-10 2-10 2-1

inquire about the price and cost

Why Choose GEMCO Animal Feed Pellet Machine?

feed-pellet-mill-manufacturer-GEMCO
  • Low cost, convenient operation and maintenance
  • High yield, energy-saving and environmental friendly
  • Designed by GEMCO research and development team
  • Nearly 30 years experience in feed pellet mill manufacturing, installation and commissioning
  • Exported to  to 70 or 80 countries around the world, including UK, Nigeria, Thailand, India, Australia, South Africa, Pakistan, Kuwait, United States, Japan, Philippines, Portugal, etc.

GEMCO, as a leading manufacturer of animal feed pellet mill machine, provides quality feed making equipments and professional service to the agricultural and aquacultural industry. Since the establishment, GEMCO has been developing year by year. Our products are constantly updated. With advanced feed pellet processing equipment, exquisite technology, strict inspection and testing system, we strive to our customers the excellent products. And, we are committed to the cause of environmental protection, energy, advocating a healthy environment, healthy life. Our tenet is integrity-based, quality and customer first!
