mobile pellet plant

Mobile pellet plant is our latest model small pellet production plant. It is highly efficient in making biomass or animal feed pellets. Raw materials can be saw dust, straw, crop waste, feed mixtures, etc.

Click the pictures to see larger files.
mobile pellet plant small mobile pellet plant mobile pellet plant right side
Front side Back side Right side

Specifications of mobile pellet plant:
Model MPL300/MPL400
Pellet diameter 6-12mm
Capacity 250-350kg/h or 350-450kg/h
Pellet density 1.1-1.3t/m3
Moisture content of raw material ≤8%
Overall size (L*W*H) 3500*1960*3500mm

Main parts

1. Hammer Mill, FSCP450D, 15kw
  • Raw material should be less than 20mm diameter. After crushing, the material can be 3-5mm in diameter.
  • Crushing blades are made from high-carbon alloy steel to be durable to use and have high efficiency.
  • Two safety locks are installed on both sides of the shell to guarantee safe operation.
  • The feeding hopper applies a fence to prevent over-sized material feeding into the crushing chamber and at the same time prevent operators' hands from being hurt.
hammer mill and protecting fence material storage bin
hammer mill and protecting fence material storage bin
2. Material Mixing & Storage Bin, 0.75kw, 1m3

By using frequency converter, its feed-in capacity can be also adjusted consistently and stably, which assures the machine sufficient material supply and avoids surplus feedstock, so the pellet machine can work under perfect condition.

pellet machine3. Pellet Machine, ZLSP300B R-type, 22kw, or ZLSP400B R-type, 30kw
  • The R-type pellet machine is especially excellent in processing hardwood pellets.
  • Main parts are made by high quality alloy steel and treated by hardening process. The wearing parts roller and die can be used for at least 800hours in production.
  • The diameter of pellets can be chosen from 6-12mm in diameter.
  • All of bearings use fully sealed structure to prevent dust.
4. Vibrating Sieve, SFZD300D, 0.37kw
Used to remove & collect the dust and powder or brocken pellets and at the same time cool the pellets to lower temperature. Usually these collected particles can betransported back to the storage bin for reproduction.

5. Scraper conveyor, CSGB145D, 0.75kw
The length and height of this conveyor is adjustale to meet actural production requirement. It is also used to cool the pellets.


The mobile pellet plant made by GEMCO is superior to those made by other manufacturers, since:

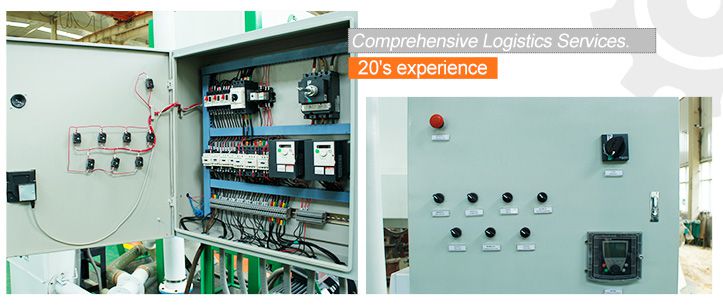

  • electrical componentsIt has small size: about 3.5*2*3.5m2. All its components are installed on one foundation frame base: hammer mill, cyclone separator, storage bin, screw conveyor, ZLSP300B R-type pellet mill, vibrating screen, scraper conveyor and electric cabinet. So it is also flexible to move.
  • It integrates crushing, pelletizing, cooling and conveying processes all in one, which greatly shortens production time, saves production and labor cost.
  • It applies all high quality materials: Schneider Electric electronic components, high steel alloy and heat processing.
  • Humanized design is adopted to protect operator safety. Dust proof technology is also applied to prevent dust during production.
