Factory Price Small Ring Die Pellet Machine

Biomass pellet machine is a kind of biomass energy pretreatment equipment. Mainly use biomass from agricultural and forestry processing such as wood chips, straw, rice husk, bark and other biomass as raw materials, and solidify them into high-density pellet fuels through pretreatment and processing. In recent years, with the development of biomass pellet fuel and the support of governmental policies, businessmen have seen the good prospects of biomass fuel and the rich returns of the industry. More and more investors began to build their biomass ring mold pellet mills to start business plans for obtaining good returns.  (Read more: How to Make Wood Pellet Fuel?)

Small Pellet Fuel Making Business
Small Pellet Fuel Making Business

Buy small ring die pellet equipment from GEMCO Machinery manufacturer or supplier at factory price, get free technical instruction of design advantage and business value to set up ring die pellet mill projects with limited cost in Tanzania, Egypt, Morocco, Ghana, South Korea, etc. If you want to establish a small ring die pellet machine factory, do not hesitate to contact us, we will provide you with a turnkey solution to help you carry out your business plan smoothly.

how to start your own production line with best business plan

Small Ring Die Pellet Mill for Sales

Small ring die pellet machine is designed to meet the demands of small pellet making business or to setup small pellet plant. It can process a various biomass materials into fuel pellets, including hardwood, straw, wood chips, sawdust, etc. More importantly, it overcomes the shortcoming of poor pelletizing effects of crude fiber. Investing in a small ring die pellet machine business can allow investors and factory owners to obtain good production benefits at a lower cost.

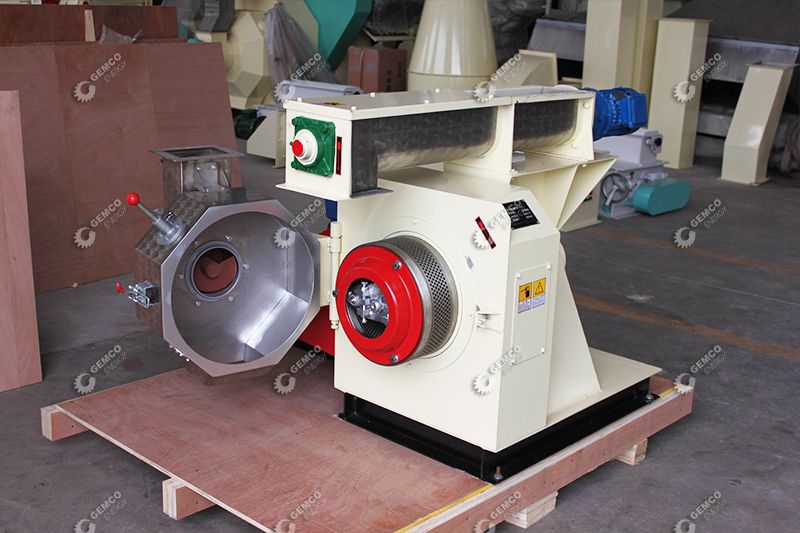

Small Ring Die Pellet Mill
Small Ring Die Pellet Mill

If you are interested in using ring die pellet mill to make livestock or poultry feed, please see animal feed pellet machine for sales.

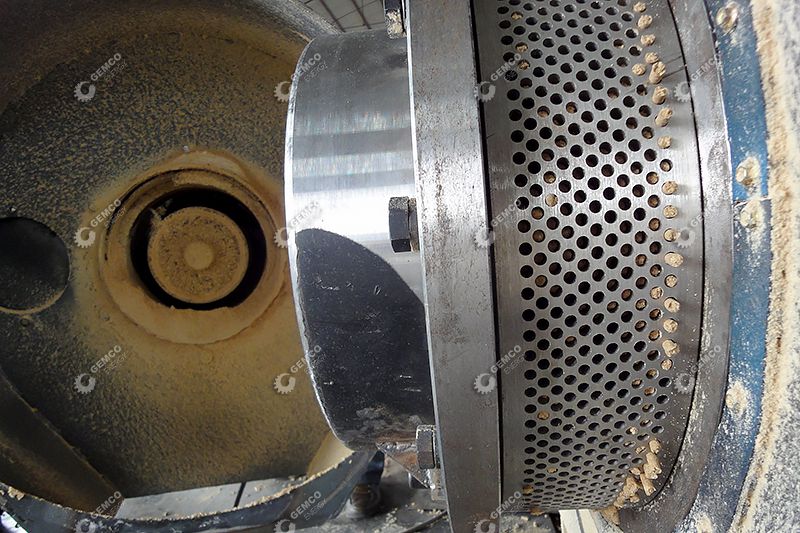

Ring Die of Small Ring Die Pellet Mill
Ring Die of Small Ring Die Pellet Mill

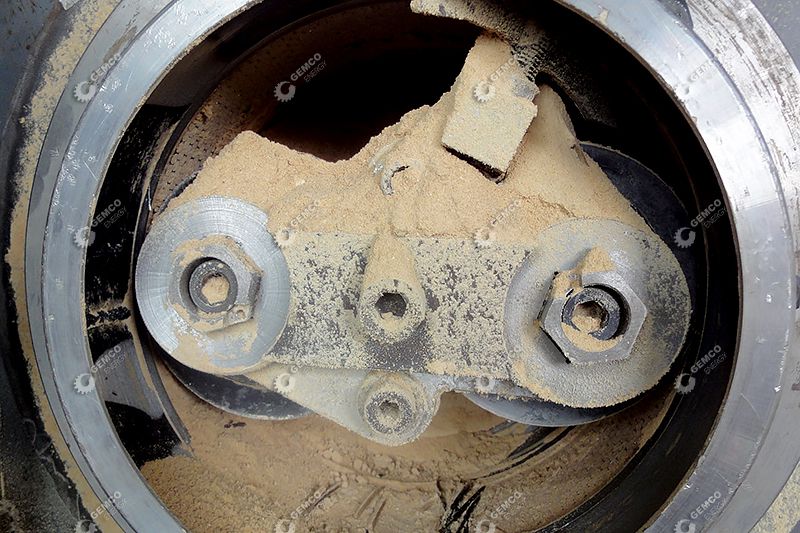

Roller of Small Ring Die Pellet Machine
Roller of Small Ring Die Pellet Machine

The ring die is the key part of the pellet machine and the most important wearing part of the pellet machine. According to statistics, the loss of the ring die accounts for more than 25% of the maintenance cost of the entire production workshop, and it has a direct impact on the quality of the extruded pellets. Therefore, it is very important for investors and manufacturers to understand the characteristics of ring molds and make correct selection, reasonable use and effective maintenance of ring molds.

you are not sure about the pelletizing effects of your raw materials, it is available for pellets making test at our factory. Welcome to contact us for more details!

how to start your own production line with best business plan

Technical Data of Small Ring Die Pellet Machine

Model Capacity (kg/h) Power (kw) Size of Pellets (mm) Weight (kg)
BPM25 200~250 22+0.75+0.37 1700*1200*1000 800
BPM35 500~800 30*2+0.75+0.75 2150*1950*1900 2200
BPM42 1000~1500 45*2+1.5+1.1 2150*1950*1900 3000

The above is the detailed parameter table of the small ring die pellet machine produced by GEMCO Machinery. Just send us massage to get the price list, terms of payment, delivery cost and more!

Design Highlights of Small Ring Die Pellet Machine

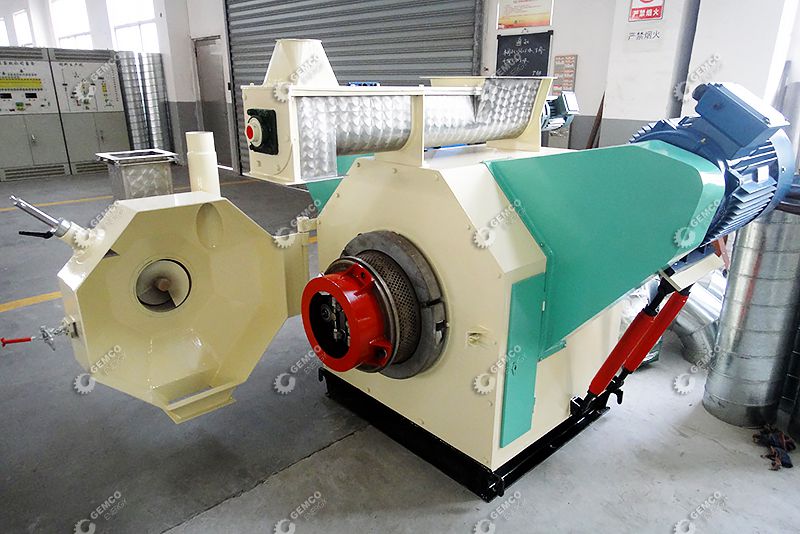

Buy Small Ring Die Pellet Machine
Buy Small Ring Die Pellet Machine
  • The main drive of GEMCO small ring die pellet mill adopts high efficiency belt drive to achieve non-stop refueling.
  • There is a cooling system added to the granulation chamber, which ensures continuous working and prevent overheat of the pellet machine over 8 hours, protects electric motor and electrical parts, and eventually lengthen its life span.
  • The ring die is quick-release hoop type, so it is easy to load and unload it.
  • Variable frequency speed feeding to ensure uniformly materials feeding
  • The cover, chute and feeder are all built with stainless steel to guarantee long service life
  • The ring die mold can be customized according to the property of raw materials and the requirements of customers.

All the designs of our small ring die wood pellet mill are conducive to high quality pellets and long-term performance. So, buying it to make biomass fuel pellets can greatly improve the efficiency of pelletizer and save pellets production cost!


Wood Pelletizing Video of Small Ring Die Pellet Machine

inquire about the price and cost

Small ring die pellet mill to startup pellet production business easily – buy high quality small ring die pellet machine for fuel pellets making: HOT sale small ring die pellet mill offered by ring die pellet machine manufacturer or supplier, guide on process of wood pellet production and how to start small biomass fuel pellets making business with limited cost in Tanzania, Egypt, Morocco, Ghana, South Korea, etc.

Practical Value & Application Prospects of Ring Die Pellet Mill

Nowadays, making straw into biomass pellets is the main direction of straw in the future. Biomass fuel pellets don’t contain sulfur and phosphorus, have high carbon content and feature full combustion. It produce a small amount of ash (potash), the air pollution is very small and is worthy of promotion. However, at present, the amount of straw used to make pellets is far less than that of other biomass materials, so the waste (bamboo, wood, etc.) with high calorific value and easy to collect and transport, is the first choice for fuel pellets manufacturers. Ring die pellet machine has a place in the recycling of waste, if a large number of pellets can replace coal, to improve the environment is of great benefit. (Read more: Straw Pellet Machine Price >>)

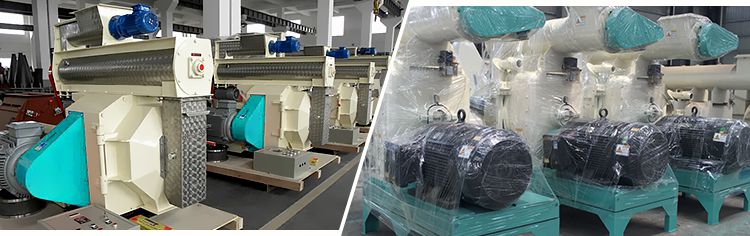

Small Ring Die Pellet Mill Manufacturer
Small Ring Die Pellet Mill Manufacturer

图片模糊不清,改为拼图模板 小型环模颗粒机制造商 GEMCO

For biomass pellets machine, they should be improved in the adaptability, energy consumption and maintenance costs and other aspects. If the moisture content of pelletizing raw material increases from 20% to 40%, then most raw materials can be pelletized directly without drying. If the freshly pressed pellets are not hot (ineffective thermal energy is reduced) and kept at about 50℃, then the pellets can be packaged directly without cooling; If we can find the material with higher cost performance and suitable for the production of ring die (now mostly 40Cr after tempering), the service life of ring die pellet mill will be improved, then the cost of equipment operation and maintenance will be reduced. Based on the above analysis, the problem that the pelleting industry chain needs to break through is to strengthen the research on biomass pellet pelletizing technology and improve the development of the pellet mechanism manufacturing quality industry chain. Specifically, if can reduce the drying link and the new pellet cooling processes, and improve equipment reliability, pellets production cost can be greatly reduced, is conducive to the further promotion of biomass pellet making machine.

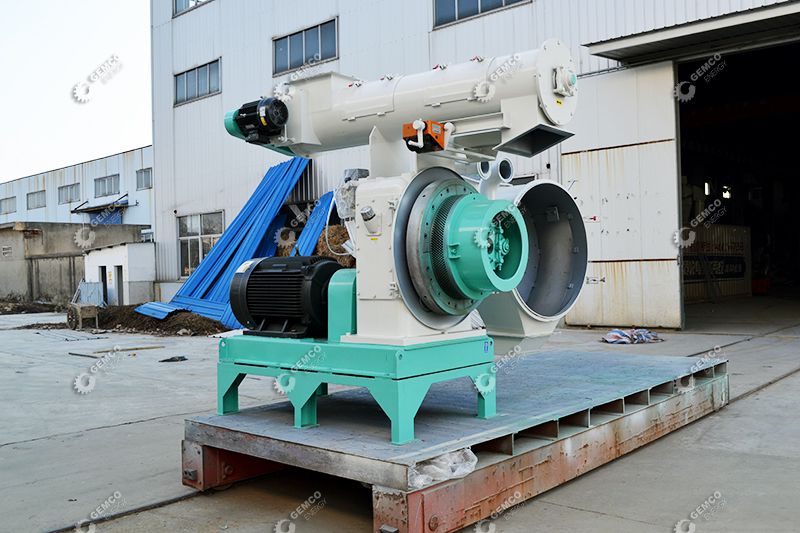

Setup Biomass Pellet Manufacturing Plant for Business
Setup Biomass Pellet Manufacturing Plant for Business


In this industry, ring die pellet mill and biomass pellet fuel are closely relative and interdependent. Pellet is a new industry of downstream products, large-scale pellet manufacturers has the investment risk because of the early investment high return period is relatively long. Therefore, to help pellets manufacturer to gain profits by setting up complete biomass pellet manufacturing plant project, here are advice.

  • First, the government should give policy support;
  • Secondly, the environmental protection characteristics of pellets should be widely recognized by the public;
  • Thirdly, there should be convenient channels for storage, transportation and supply of pellets.

The application of pellets determines the promotion prospect of ring die pellet mill. Basically, biomass pellet machines will have a wide range of uses in the production process, and can better reflect good commercial value. At the same time, they will also bring huge business opportunities to more investors. Therefore, investment in biomass fuels And the biomass pellet machine can be satisfied with the development of the market, at least judging from the current situation, it is very stable. If you want to join the biomass pellet manufacturing industry now, please set the cost requirements and benefit targets in advance to better help you develop your business blueprint. If you have any needs, please fill in the message form below to inform us of your processing plan, and we will provide you with a free quotation.
