Buy Ring Die Pellet Mill - Vertical or Horizontal

In complete pellet production line, ring die pellet mill is the key equipment to process raw materials like wood chips, tree braches, sawdust, logs, crop straw, etc. into pellets. The capacity of single ring die biomass pellet machine ranges from 500kg/h to 3 tons/h, which allows both small scale and large scale pellet production. (Related Post: Small Biomass Pellet Maker >>)

Biomass Pellets By Ring Die Pellet Mill
Biomass Pellets By Ring Die Pellet Mill

The origin of the name of ring die pellet machine is derived from its structure with the die shaped of “circle ring”. In the ring, there are 2 or 3 rollers inside to rotate and extrude the material in the middle, thus the material go through the die holes to be cylindrical pellets.

Types of Ring Die Pellet Mill Machine - Vertical & Horizontal

Ring die pellet mill machine is divided into two types: Vertical Ring Die Pellet Mill & Horizontal Ring Die Pellet Mill. Each type has its own unique features.

Vertical VS Horizontal Ring Die Pellet Mill

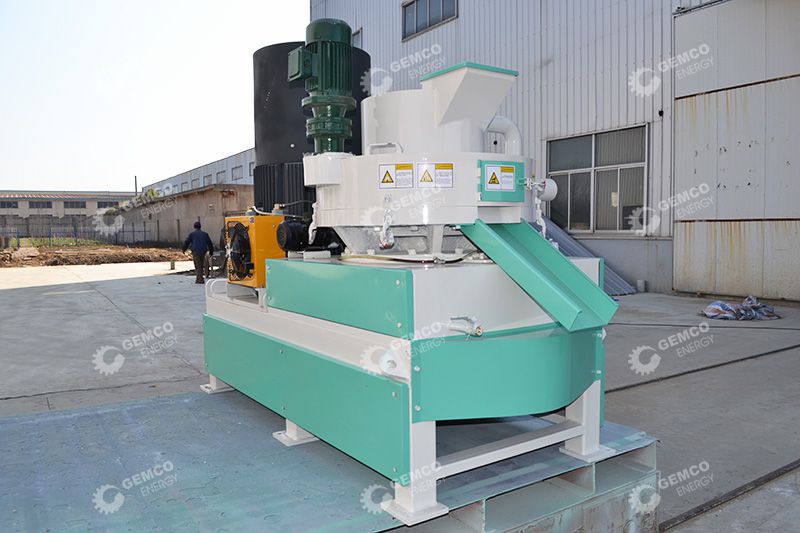

Vertical Ring Die Pellet Mill
Vertical VS Horizontal Ring Die Pellet Mill1

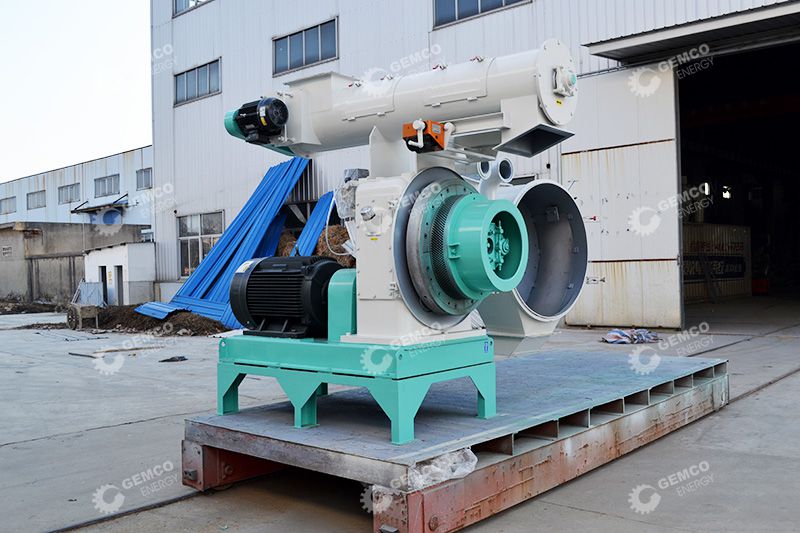

Horizontal Ring Die Pellet Mill

Vertical ring die pellet machine and horizontal ring die pellet mill have many differences, but the biggest difference of these two types of ring die pelleting mills is the working principle.

  • Vertical Ring Die Pellet Mill Working Principle

The vertical ring die pellet mill is specially designed to press the material which is hard to be bonded and shaped. The material can be loaded into the pelleting chamber in its own weight. Then, under the strong pressure between the rotating roller and the ring die, the material enters into the die holes to be formed into pellets. The vertical ring die pellet mill is called light-weight material pellet mill as well. Because vertical pellet mill is more suitable for managing the materials with light weight, such as, rice hull, grass with light weight, straw, melon and fruit hull and the material which is not easy to form. (Related Post: Rice Husk Briquette Machine >>)

  • Horizontal Ring Die Pellet Mill Working Principle

Differ from the vertical ring die pellet mill, the horizontal ring die pellet mill adopts the feeding auger to feed the material into the pelleting chamber through the stock bin. The material begin to be soft in the sealed pelleting chamber, and under the great extrusion between rotating ring die in a high speed and the roller, the soft material is pressed into the holes uniformly distributed on the die. After that, the formed cylindrical solid body out of the holes will be cut by the knife, thus discharged through the export hole. (Related Post: Wood Pellet Processing Equipment >>)


Buy Vertical or Horizontal Ring Die Pellet Machine - Technical Data

Model Vertical Ring Die Pellet Mill Horizontal Ring Die Pellet Mill
Capacity 600~2500 kg/h 1200~2500 kg/h
Power 55~132 kw 93.5~113.7 kw

Please note: here just listed the basic parameters of the two types of ring die pellet machine, for more detailed technical data and price list, please contact us directly, we can send the free quotation quickly!

inquire about the price and cost


Vertical Ring Die Pellet Mill for Sales

Buy High Quality Vertical and Horizontal Ring Die Pellet Mill to Make Biomass Pellets: HOT Sale Vertical Ring Die Pellet Mill and Horizontal Ring Die Pellet Machine Offered by Biomass Pellet Mill Manufacturer or Supplier, Guide on Process of Pellets Production and How to Start Pellet Production Business with Limited Cost in Tanzania, Egypt, Morocco, Ghana,South Korea, etc.

Features between Vertical VS Horizontal Ring Die Pellet Mill

As the different types of ring die pelleting mill, the two type of ring die pellet machine have their own unique advantages.

Vertical Ring Die Pellet Mill

Vertical Ring Die Pellet Mill
Vertical Ring Die Pellet Mill

  • Vertical ring die pellet mill is applicable for difficult molding materials with low adhesion rate, for example peanut shell, rice husk, fruit shell and sunflower husk; branches, bark, stem and other wood residues, various of crop stalks etc.
  • The new generation gearbox adopts high-precision gears, automatic lubricant pump system, keeping the gearbox working stability and warranty period.
  • In this vertical ring die pellet mill, the die holes with equidistant distribution are centered by the output shaft, making more powerful and stability of machine working.
  • Automatic lubrication system. The gear box is configured with circulation pump lubricating system controlled by the pinch roller to inject oil in timing. The oil pump motor can lubricate with automation and circulation making sure the shaft can be fully lubricated thus making the pellet machine running safely.
  • The blower system is equipped in side of the working bin, controlling the working time freely.
  • Feeding vertically with frequency conversion makes the feedstock uniform with no arch camber and easy heat dissipation.

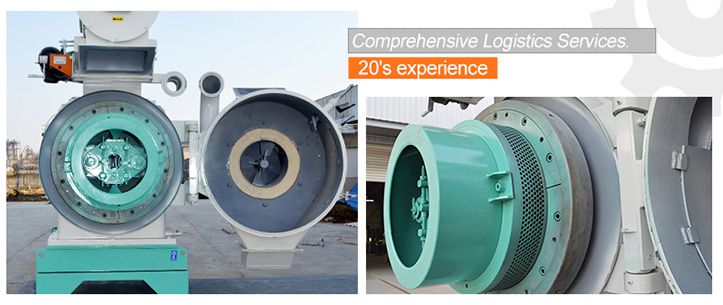

Horizontal Ring Die Pellet Mill

Horizontal Ring Die Pellet Mill
Horizontal Ring Die Pellet Mill

  • The all-stainless steel feeder, configured with original imported frequency converter to control feeding uniformly and accurately.
  • Monitoring system is equipped, solving the problem of high temperature hazard in the pelleting chamber caused by the improper operation thus efficiently avoiding the danger of bursting and fire.
  • The components is made by international advanced manufacturing craft and designed according to the characteristics of the material from the customers, prolonging the service time of the equipment.
  • The ring die of feed machine with quick-release coupling reduces the time of replacing the ring die and improves the production efficiency.
  • Double-motor drive. The high strength SPB narrow V-belt drive transmit with stability and reliability but with low noise.
  • The horizontal ring die pelleting mill is configured with many kinds of ring dies with different aperture diameters and compression ratio, the customers can choose according to their needs.

how to start your own production line with best business plan

Setup Wood Pellet Production Plant at Low Cost

GEMCO is now one of largest pellet mill manufacturers in China, providing factory price flat die pellet mill, vertical ring die pellet machine and horizontal ring die pellet mill. We offer turnkey solutions to build biomass pellet plant projects, including equipment selection, equipment manufacturing, onsite installation and commissioning. We have built complete wood pellet production plant in many countries like Indonesia, Canada, Italy, United States, Russia, Morocco, Peru, Romania, etc..

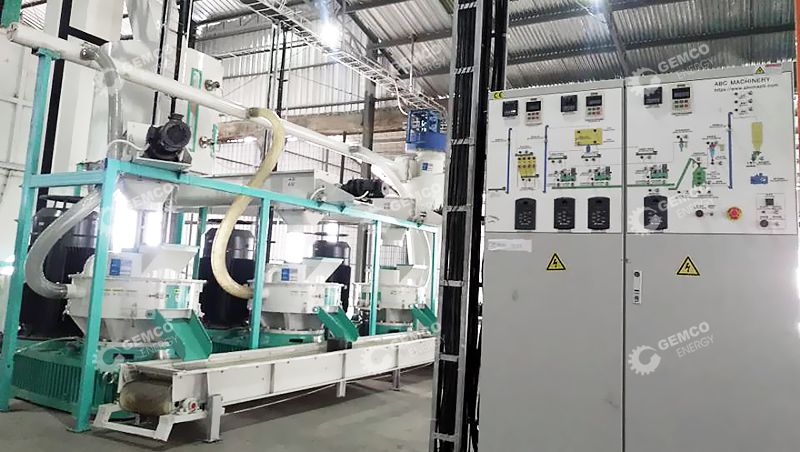

Complete Wood Pellet Production Line
Complete Wood Pellet Production Line

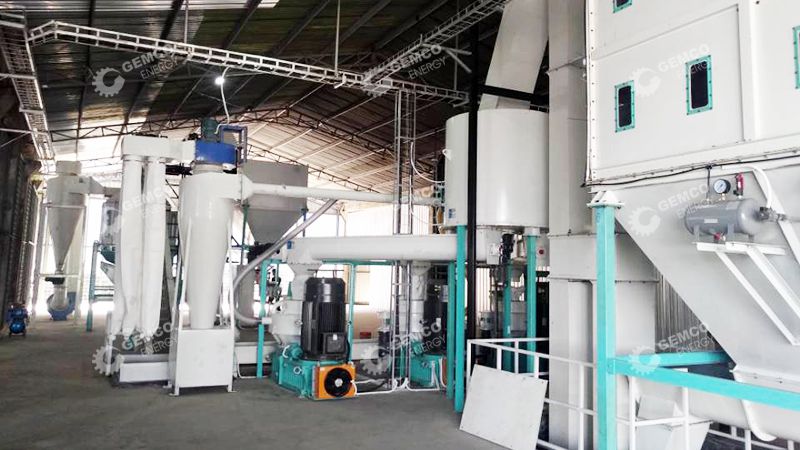

Biomass Pellet Plant Project
Biomass Pellet Plant Project

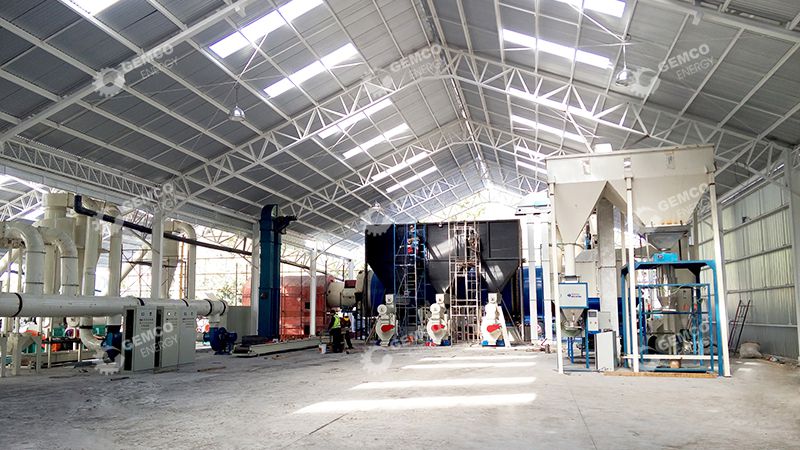

Low Cost Biomass Pellet Plant
Low Cost Biomass Pellet Plant

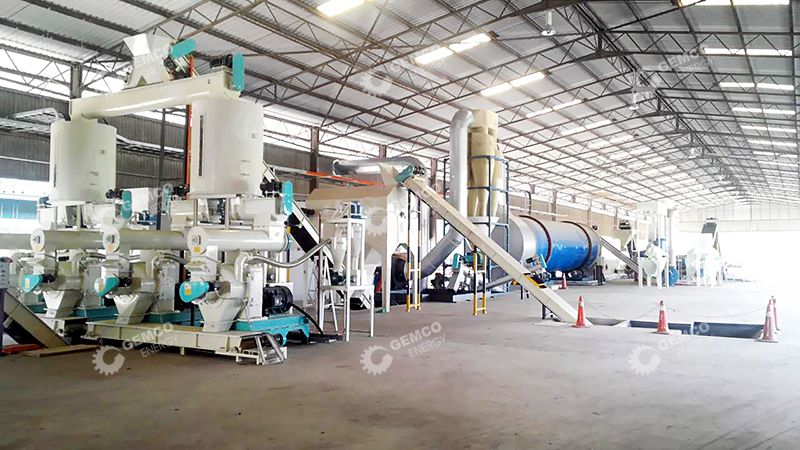

Setup Wood Pellet Mill Plant
Setup Wood Pellet Mill Plant

If you are also interested in setting up biomass pellet production line, here, we have complete project report that are valuable for project cost estimation. Any questions about our ring die pellet mill machine, please contact us, we are here for your needs!
