GCBC Screw Briquetting Machine

GCBC series biomass briquette making machine is screw briquette press which is a popular type of biomass briquette machine because of the wide application of the final briquettes: used for heating or BBQ (barbeque) to replace coal in many countries.

small briquetting machine
GCBC-I Briquetting Machine
factory price screw briquette machine
GCBC-II Briquetting Machine

The screw design of this briquette machine makes it able to produce cylindrical or hexagon briquettes with hollow centre, so that the briquettes are easily and fully burned as well as easily piled up for storage and transportation. (Read more: How to Make Briquettes from Wood Shavings >>)

Technical Data of GCBC Screw Briquette Machine

Model GCBC- I GCBC- II
Capacity (kg/h) 180-210 300-350
Motor Power (kw) 15 18.5kw
Electric Heater (kw) 2.2kw*2 2.2kw×2
Life of the Inner Former 1-2years 1-2years
Size of Briquettes Dia.50mm*L.480mm Dia.60mm*L.500mm
Size of Inside Hole Dia.16mm Dia.16mm
Density of Briquettes 1.3 g/cm3 1.3 g/cm3
Weight (kg) 700kg 1000kg
Overall Dimension (mm) 2700*600*1600 mm 2000*600*1700 mm


inquire about the price and cost

The biggest features of screw briquetting machine is low cost, high profits and quick returns. Because the raw materials for this biomass briquetting machine are widely available and the price is quite low, the profit of final produced briquette is quite amazing. And, the investment of full set of briquetting machine is also very low, which makes it a good investment project with small venture capital.

Raw Material for Screw Briquetting Machine

Many agricultural wastes, forestry wastes and organic municipal waste can be used to make briquettes for energy use. The most common raw materials for briquetting has sawdust, wood chips, bamboo shavings, bagasse, cotton stalk, coconut shell, maize straw, wheat straw, rice straw, rice husk, peanut shell, sugarcane bagasse, twig, furfural residue, etc.


Bagasse Briquettes
Bagasse Briquettes
Briquettes Made from Bagasse
Briquettes Made from Bagasse
biomass maize straw briquette
Rice Straw Briquettes
Briquettes Made from Rice Straw
Briquettes Made from Rice Straw
Sawdust Briquettes
Sawdust Briquettes
Briquettes Made from Sawdust
Briquettes Made from Sawdust

how to start your own production line with best business plan

If you are not sure the briquetting effects of your raw materials, you can choose to send the raw material to our factory for a trial test. For details, please just contact us directly!

Advantages of GEMCO Screw Briquetting Machines?

Screw Briquetting Machine for Sale
Screw Briquetting Machine for Sale
  • No binder is needed in briquetting process, since the high temperature pressing process will soften the lignin inside the biomass and makes it adhesive.
  • The briquettes made by this machine have regular shape, high density, easy to combust and durable to burn, no ash, etc. So the briquettes are welcomed by many users.
  • The screw shaft, inner former and other key parts are made by high hardness alloy steel to have longer service life than those made by other manufacturers.
  • The gear box is equipped with lubricating device so that the main part can be lubricated regularly.
  • The machine also adopts auto-cutting system to cut the briquettes into uniform length automatically.
  • It has low price and high quality, which makes it cost-effective.
Screw Briquette Press Manufacturer
Screw Briquette Press Manufacturer

Screw Briquette Press ManufacturerGCBC Screw Briquette Press Briquetting Performance


Screw Briquetting Machine: Making Briquettes from Wood & Sawdust – Buy High Quality Screw Briquette Press for Biomass Briquettes Making: HOT sale screw briquetting machine offered by biomass briquette machine manufacturer or supplier, guide on process of various wood or sawdust briquettes production and how to start briquettes making business with limited cost in Tanzania, Egypt, Morocco, Ghana, South Korea, etc.

Setup Complete Briquetting Plant at Low Cost

Biomass briquettes have been a great fuel in many countries, so many people are seeking for suitable biomass briquette machines to setup their own complete briquetting plant for biomass briquette production business. Below is the biomass briquette making plant designed by GEMCO for various briquettes. (See more: Successful Biomass Briquetts Plant Projects >>)

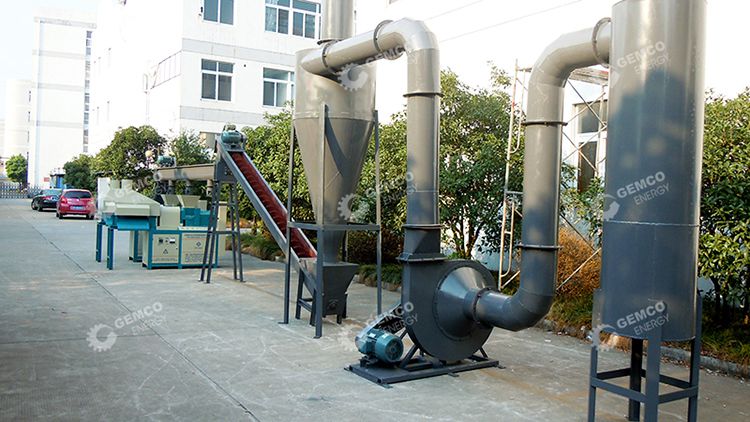

biomass briquetting plant
Screw Briquetting Plant

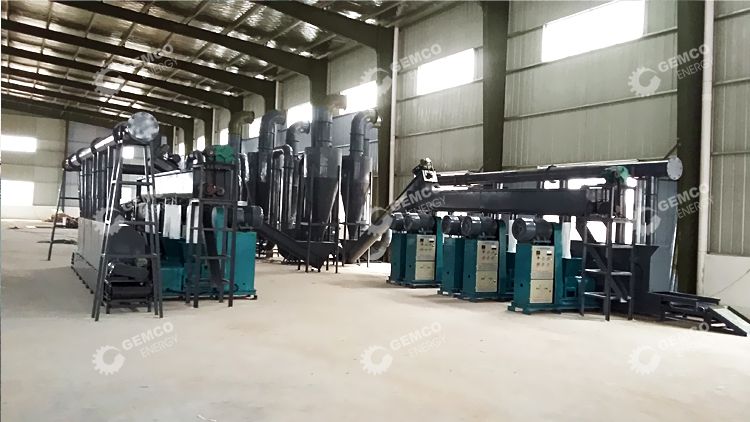

Complete Briquettes Production Line
Complete Briquettes Production Line

The main equipment included in this small briquette production line has crushing machine, drying machine, screw briquette press and more.

What’s more, the briquettes can be charred into charcoal briquettes in sealed kiln or stove to increase their value. GEMCO offers customized design for wood briquetting plant. Our service purpose is dedicated to provide customers with the most cost-effective briquetting plan for rapid development of business. FREE technical supports are available, just contact to get more details!
