diesel pellet mill

Diesel Pellet Mill provided by GEMCO is a type of flat die pellet mill that is used to make wood pellets. It is driven by diesel engine, so it is also available to make biomass pellets even though there are no access to electricity. (Read more: Electric Pellet Machine >>)

In addition, it can also save the cost of energy consumption. Diesel pellet making machine has compact size and easy to transport and operate. The wood pellet production output can be 250~400KG/H, which makes it great for home use, farm use, small pellet making business use. (Read more: How to Make Wood Pellets at Home? )

Diesel Pellet Mill
Diesel Pellet Mill

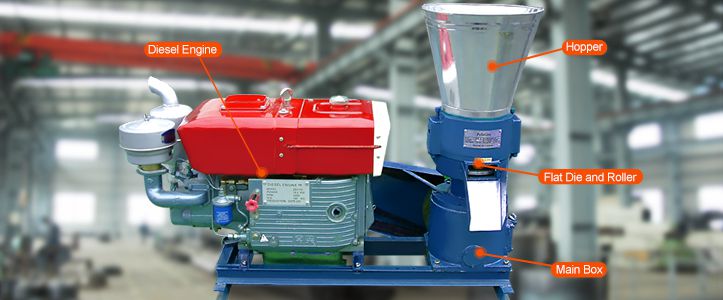

The diesel pellet machine is composed of clutch assembly, gear box, main spindle box, roller, die, upper body, feeder, diesel engine and base.

GEMCO Diesel Pellet Machine Models

In order to better process biomass pellets, diesel pellet machine we developed has two types: D-type Diesel Pellet Mill and R-type Diesel Pellet Mill.

D-type diesel pellet mill
D-type Diesel Pellet Machine
R-type diesel pellet machine
R-type Diesel Pellet Machine
Rotating Die of Pellet Making Machine
Rotating Die of Pellet Making Machine
Rotating Roller of Diesel Pellet Machine
Rotating Roller of Diesel Pellet Machine

Technical Data of Die Rotating (D-type) Diesel Pellet Making Machine

Model Number Power(Hp) Output(kg/h) N.W./G.W.(kg) Packing Size(mm)
ZLSP150A 8 50-100 180/220 1000*500*750
ZLSP200A 15 80-120 210/240 1460*750*900
ZLSP230A 22 120-200 280/310 1560*850*1000
ZLSP260A 33 160-250 330/360 1200*500*1070
ZLSP300A 41 250-400 410/450 1220*600*1000

Technical Data of Roller Rotating (R-type) Diesel Pellet Machine

Model Number Power (Hp) Output (kg/h) Weight (kg) Package Size (mm)
ZLSP200A R-type 15 80-120 320/350 1460x950x1100
ZLSP300A R-type 41 250-350 850/890 1100x700x2480
ZLSP400A R-type 55 350-450 1010/1050 1300x800x2600

inquire about the price and cost

Our diesel pellet making machine has been exported to many countries, like Philippines, Greece, Tanzania, Canada, United States, Latvia, Nigeria, etc. It can be very easy to use for outdoor pelletizing. Most importantly, for users who are unable to use three-phrase power but also requires large production of biomass pellets, it is the No.1 Choice. For latest price list, machine parameters, shipping cost, operation videos, please just contact us directly to get it.

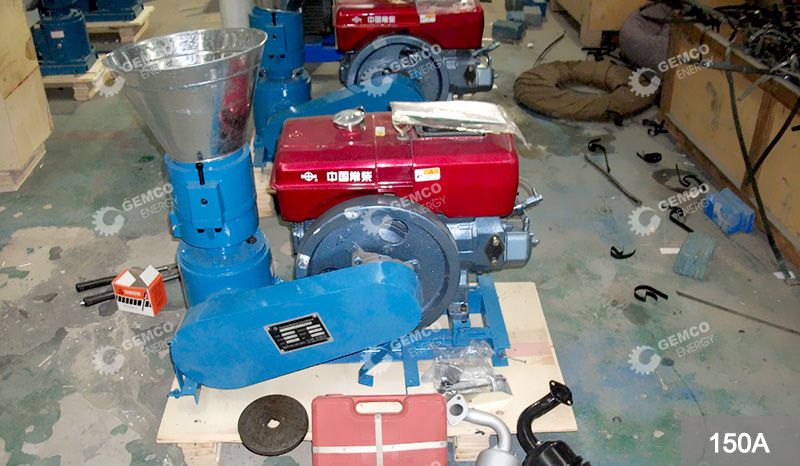

Diesel Pellet Machine Price
Diesel Pellet Machine Price

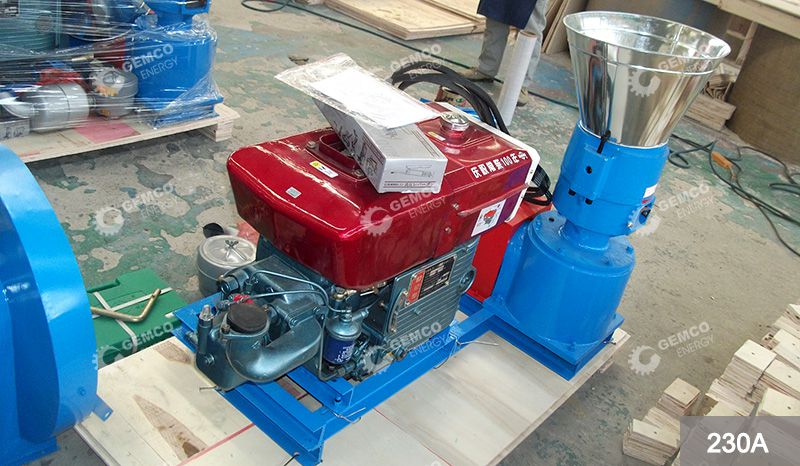

Diesel Pellet Machine for Sales
Diesel Pellet Machine for Sales

Biomass Pellets Made by Diesel Pellet Making Machine

GEMCO diesel pellet machine can easily press sawdust, straw, bamboo shavings, bagasse, peanut shell and other biomass materials into cylinder pellets. (Related Post: How to Choose Your Own Fuel Pellet Mill? )

bamboo pellets peanut shell pellets pineapple peels pellets
Bamboo Pellets Peanut Shell Pellets Pineapple Peels Pellets
wheat bran pellets white pine pellets rice husk pellets
Wheat Bran Pellets White Pine Pellets Rice Husk Pellets


Additionally, we also provide trial test for your raw materials. Buy the diesel pellet machine from us can save your time, efforts and money!

how to start your own production line with best business plan

Why Choose GEMCO Diesel Powered Pellet Machine?

Diesel Pellet Making Machine
Diesel Pellet Making Machine
  • First of all, it can solve your problem of lacking electricity while keeping the same productivity. Not all areas are able to get electricity, especially in the fields or rural farms. But this inconvenience cannot stop us from wood pellets production! The diesel pellet machine has compact size, so you can place wherever you need.
  • It is also cost-effective, since it uses low price diesel oil.
  • Diesel pellet mill can process various kinds of raw materials like sawdust, wood chips, straw, sunflower husk, biomass, stalk, etc. No binder or additive is needed in pellets making process.
  • The diesel pellet mills can be equipped with a 24 Volt electric starter if needed by customer.
  • The large horsepower diesel engine is installed with 2 batteries, so that the machine is easily started in cold winter.
  • The transmission shaft of the diesel pellet mill is supported by two tapered roller bearings that can withstand larger two-way axial force and radial force to ensure the safety of the structure.
  • The diesel pellet mill is also equipped with a clutch to ensure quick stop in case of emergency.

Biomass Pellet Machine by Diesel Engine Pelletizing Process

Diesel Pellet Making Machine for Sale with Low Price: HOT Sale diesel pellet mill offered by pellet making machine manufacturer or supplier, guide on process of wood pellets production and how to start small wood pellets business with limited cost in Tanzania, Egypt, Morocco, Ghana, South Korea, etc.
