small pellet mill

The most popular type of small pellet mill for sale is electric pellet mill.

Because of its relatively small capacity, usually the small pellet mills are used for home, small farm or small plants and workshops. The pellets made by the mill can be used for home heating, cooking, horse bedding, cat litter, and so on.

Why do you need electric small pellet mills?

  • They are easy to operate and maintain
  • They are movable, so you can use it wherever you want
  • They are economical to people because of their low price. you only need to invest a small sum of money in the small pellet mill
  • They are environmental friendly. You do not need to worry about pollution.

There are 2 types of electric flat die pellet mill: R-type and D-type




R-type small pellet mill

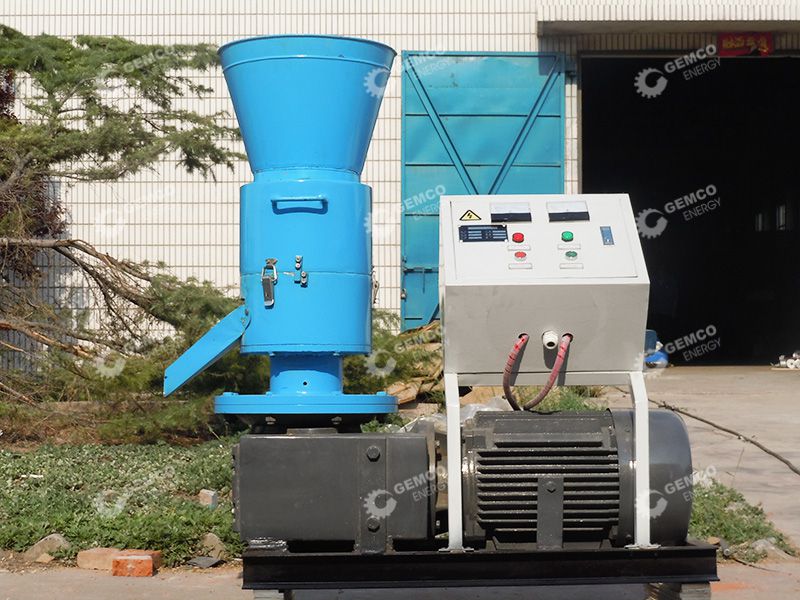

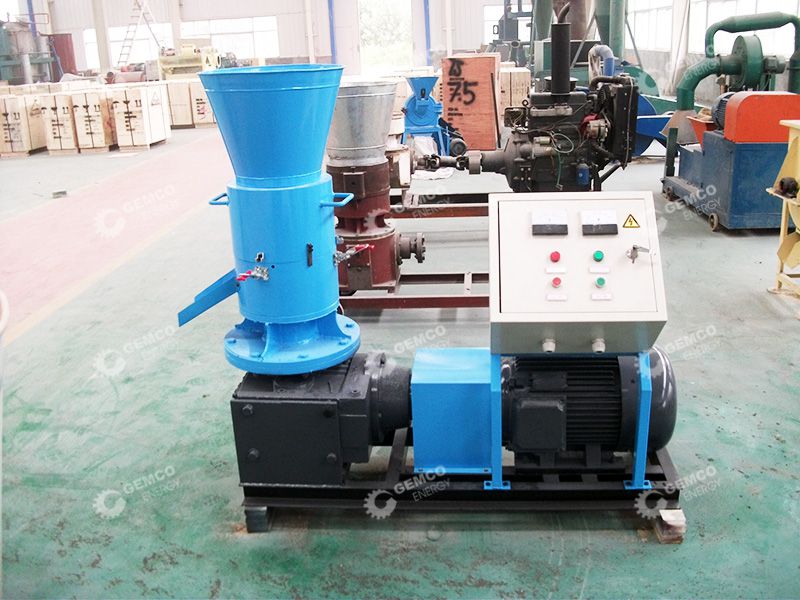

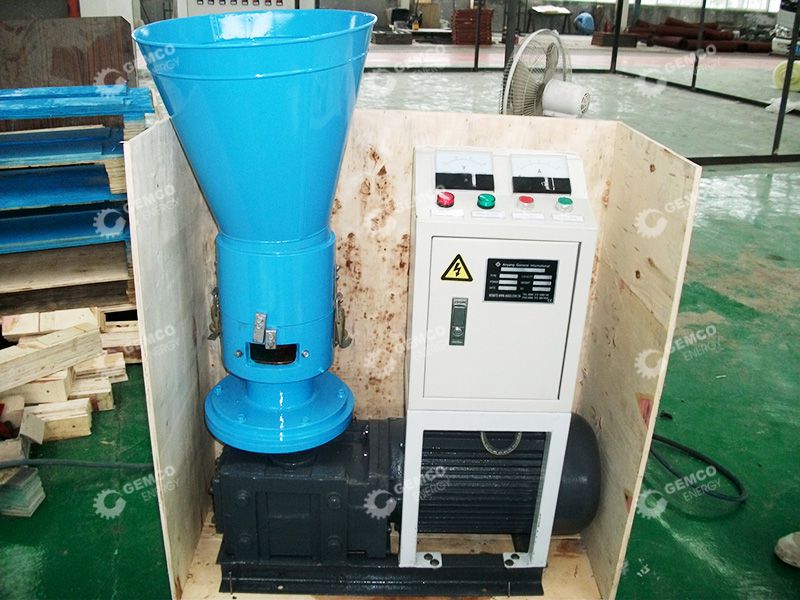

200B R-type electric pellet mill 300B R-type electric pellet mill 400B R-type small pellet mill 550b r-type pellet mill
200B R-type 300B R-type 400B R-type 550B R-type
(Click the pictures to see large files.)

Technical data of R-type small electric pellet mill:

Model Number Power(kw) Output(kg/h) N.W./G.W.(kg) Package Size(mm)
ZLSP200B R-type 3phase, 7.5 80-120 215/245 950*450*1050
ZLSP300B R-type 3phase, 22 250-350 540/575 1350*750*1400
ZLSP400B R-type 3phase, 30 350-450 770/810 1400*800*1450
newZLSP550B R-type 3phase, 55 500-800 1770 2300*750*1850



Main part roller and die
R-type roller and die

R-type small pellet mill features:

  • Rotating roller pellet mill has a stationary die with a rotating roller shaft so that the rollers spin to force the feedstock through the holes of the die. Then raw material sawdust is then condensed into wood pellets.
  • It is more suitable for processing hardwood as Cypress, Elm tree, Hickory, Oak, Lignumvitae, Birch, etc.
  • The wood pellets made by R-type pellet mill can be as long as 3cm.
  • The service life of rotating roller is longer than traditional design: can reach 2000 hours.
  • The electrical components utilize famous brands CHINT and SIEMENS
  • It also has diesel type.
Biomass Pellets made by small pellet mills

D-type small pellet mill

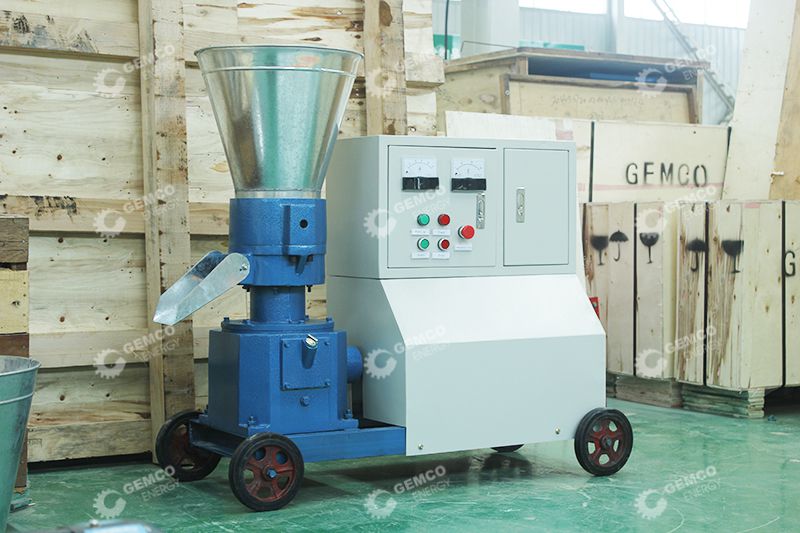

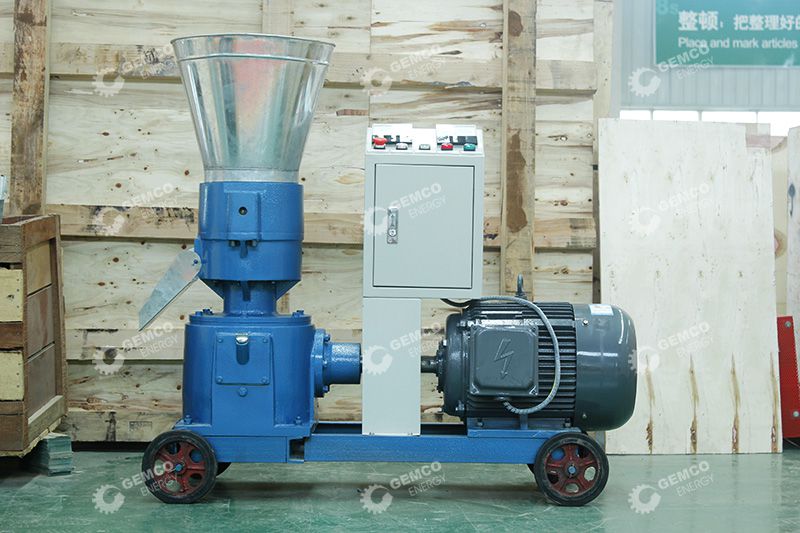

D-type small pellet mill D-type pellet mill with CE motor
D-type small pellet mill D-type pellet mill with CE motor

Technical data of D-type small electric pellet mill:
Model Number Power(kw) Output(kg/h) N.W./G.W.(kg) Package Size(mm)
ZLSP150B 3phase, 5.5 50-100 95/100 800*450*700
ZLSP200B 3phase, 7.5 80-120 200/230 1050*480*930
ZLSP230B 3phase, 11 120-200 290/320 1180*540*1000
ZLSP260B 3phase, 15 160-250 320/360 1240*540*950
ZLSP300B 3phase, 22 250-400 350/380 1300*560*1100

D-type small electric pellet mill with CE-motor
Model Number Power(kw) Output(kg/h) N.W./G.W.(kg) Package Size(mm)
ZLSP150C 3phase, 5.5 60-110 105/125 1000*480*780
ZLSP200C 3phase, 7.5 80-120 210/230 1050*550*830
ZLSP230C 3phase, 11 120-200 290/320 1200*560*950
ZLSP260C 3phase, 15 160-250 340/370 1240*580*1000
ZLSP300C 3phase, 22 250-400 425/465 1300*620*1100

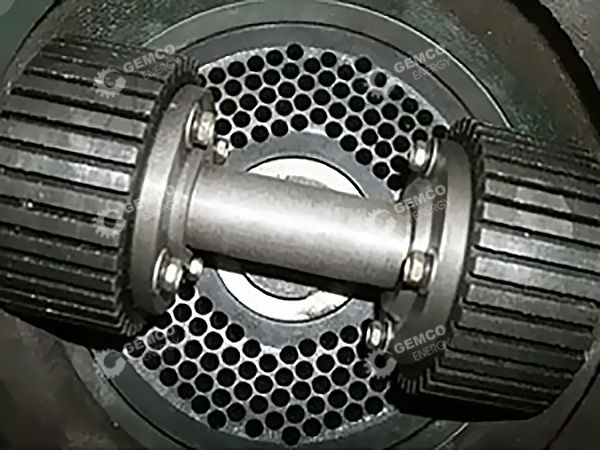

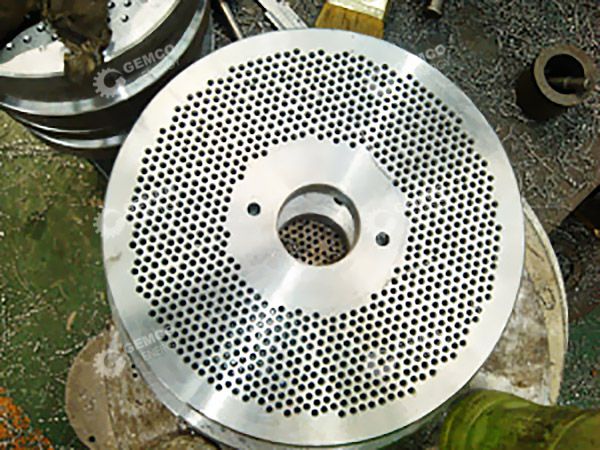

Roller and die for D-type small pellet mill
roller and die

D-type small pellet mill features:

  • Different from R-type, D-type flat die pellet mill has a stationary roller and a rotating die.
  • It is more suitable for processing sawdust. Also ideal for making pellets from straw, peanut shell, stalk, crop waste, pine wood, hops, alfalfa, grass, bamboo waste, bagasse, etc.
  • The roller and die (also called plate or disk) of small pellet mill adopts high wear-resisting alloy steel and treated by special heat treatment to have high hardness and long lifespan. (It is recommended to replace both the roller and die at the same time if the original ones wear.)
  • The size of flat die holes (which is also the diameter of wood pellets) can be customized according to your own raw material and special requirement. We have obtained the best compression ratio for more than 30 kinds of raw materials. If you have special raw material, you can also send to us and we can make FREE test for you.
  • We also apply Current-to-Voltage Converters to meet your native voltage and frequency (different countries may have different voltage and frequency), so that the machines can work smoothly in your country.
  • The driving gear is made of superior alloy steel. It embraces the advantages of steady transmission, low noise, excellent loading capacity, slow temperature rise, long service life and good pressure tolerance.
  • D-type home pellet mills are relatively cheaper compared to R-type. For economical reason, you can choose this one.
Whether to choose the R-type or D-type electric flat die pellet mill depends on your specific raw material and special demands. You can contact us now to get professional advice.
