large hammer crusher

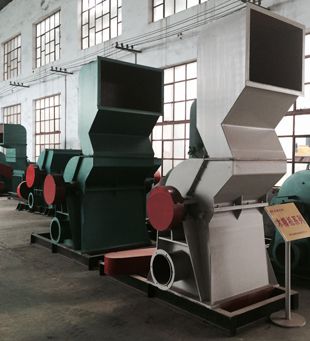

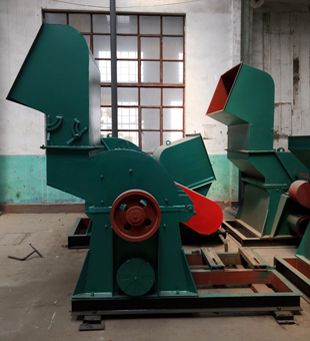

GC-FS-series of large hammer crusher is a kind of crushing machines of GEMCO. It belongs to large scale large hammer mill crusher, and that means it has large yield. GC-FS series of large hammer crusher is a main part of the whole pellet mill production line or the briquette production line.  It can process many kinds of raw materials, such as wood chips, peanut shells, rice stalks, corn stalks, etc. This kind of large hammer crusher has the conveyor belt and dedusting system, so the feeding is uniform and dust is collected to reduce dust pollution. The main parts is hammer, toothed plate, mesh pieces and rotor.
hammer crusher large hammer crusher
Type GC-FS-800 GC-FS-1000 GC-FS-1300
Knife roll diameter (mm) 650 650 800
Knife roll rotating speed (rpm) 2320 2320 2400
Flail knife quantity 54 72 72
Main motor power (kw) 55 75 132
Production capacity (t/h) 1.5-2 2-3 4-5
Feeding port size (mm) 800×300 1000×300 1300×300
Main machine weight (t) 3.2 4 5
Outer dimension 2250×1360×2800

2250×1560×2800

2400×2100×2850


Highlights of Large Hammer Crusher
