Customize Your Feed Mill Plant for Poultry

GEMCO feed mill plant for poultry, is suitable for animal feed production of chicken, geese, duck, quail, which is customized according to the requirements of the customers, completely meeting the requirements.
Large Feed Mill Plant for Poultry
(Large Feed Mill Plant for Poultry)


Design Production Process of Poultry Feed Mill Plant

The common raw materials for making poultry feed are various, such as, corn, sorghum, triticale, wheat, polished rice, rice bran, rice, inferior flour, bran, barley and its products, oats and its products, tapioca flour, vegetable meal, cotton meal, peanut meal, whey powder, meat and bone meal, Fish meal, blood meal, feather meal etc.
In view of the characteristics of these raw materials, the GEMCO poultry feed mill plant mainly includes a raw material receiving and cleaning system, a pulverizing system, an ingredient and mixing system, a pelletizing system, and a finished product packaging system.

Detailed Procedures

Raw materials > Cleaning > Crushing > Ingredients > Mixing > Pelleting > Cooling > Crushing > Screening > Packing > Feed Products

The above process is designed according to a relatively complete poultry feed production line. According to the differences of the raw materials, the equipments used the same process are different. For example, For small poultry feed mill plant, in the pelletizing section, flat die feed mill machines are generally equipped, and ring die feed mill machines are equipped in the two large complete feed production lines.

GEMCO Feed Mill Machinery Introduction

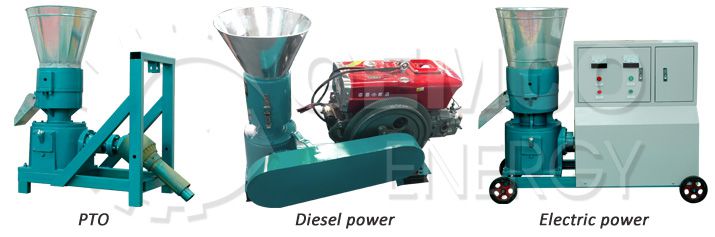

flat die feed mill machine
(Flat Die Feed Mill Machines)
Type Power Output G.W. Package size
ZLSP 150B Three phase 4kw 90-120kg/h 100kg 800*350*740mm
ZLSP 200B Three phase 7.5kw 200-300kg/h 204kg 1050*480*990mm
ZLSP 230B Three phase 11kw 300-400kg/h 218kg 1180*520*1020mm
ZLSP 260B Three phase 15kw 400-600kg/h 300kg 1240*540*1070mm
ZLSP 300B Three phase 22kw 600-800kg/h 437kg 1300*560*1220mm
ZLSP 400B Three phase 30kw 800-1000kg/h 700kg 1700*750*1400mm

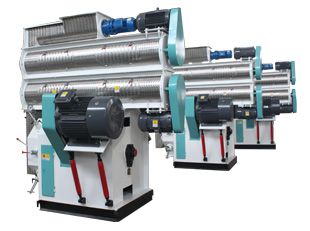

ring die feed mill machine
(Ring Die Feed Mill Machinery)
Model Capacity (t/h) Main motor power Ring die inner diameter (mm) Conditioner motor power (kw) Feeder power (kw) Size (mm) Weight (kg)
BPM25 1-2 22kw 250 1.1 0.75 1750× 650× 1750 800
BPM32 2-5 22kw×2 320 2.2 0.75 1900× 1800× 1650 2000
BPM35 3-7 30kw×2 350 2.2 0.75 2100× 2000× 1850 2400
BPM40 4-10 45kw×2 400 4 1.5 2200× 2000×2150 2900
BPM45 6-15 55kw×2 450 4 1.5 2300× 2350× 2150 3500



Simple Small Feed Mill Plant for Poultry

GEMCO has designed simple and small feed equipment for access to the feed market or small farmers. The STLP300/STLP400poultry feed mill plant can produce the feed for chicken, duck, geese, birds etc in the capacity of 600-800kg/h、800-1000kg/h. It is mainly composed of small crusher, small feed mixer, screw conveyor, storage bin, small feed mill machine, feed pellet cooler, packaging machine etc. All the equipments is selective in the small feed mill plant for poultry.

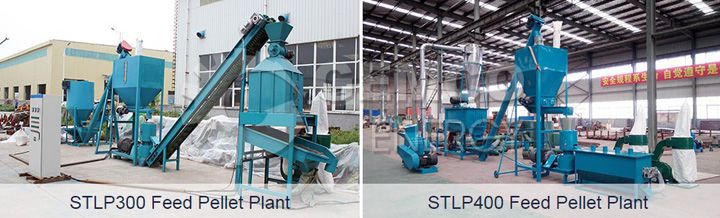

Small Feed Mill Plant for Poultry
  • Type: STLP300, STLP400
  • Power: 38.4kw, 56.1
  • Output: 600-800, 800-1000
  • Equipment weight: 1700kg, 2100kg
  • Volume: 7340*2360*4000mm, 7445*2945*4000mm
  • Pellet size: 2-8mm
  • Scoring rate: >90%
  • Suitable places: chicken farm, livestock, poultry and fish farm, small feed production workshop.
  • Raw materials: feed mill plant for poultry raw materials can include corn, wheat, forage, alfalfa, oilseed meal, oil cake, forage, bone meal, trace elements, and so on.

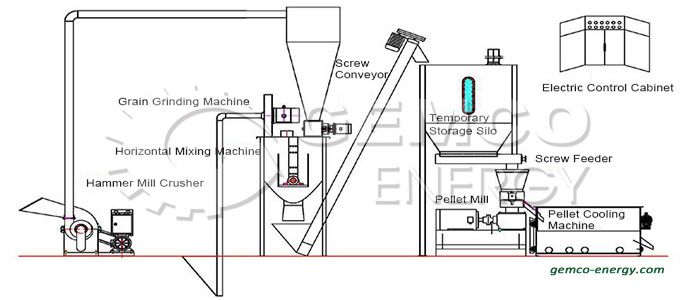

Mini Poultry Feed Mill Plant Production Process

Poultry Feed Mill Plant Production Process
poultry feed mill machine production process

GEMCO Machinery Manufacturing Co., Ltd. provides ruminant poultry feed mill plants with an annual output of 6-100 million tons of poultry feed, pig feed, cattle and sheep, etc. for your choice. And we can customize the poultry feed mill plant with other capacity according to the development requirements of customers, customizing other livestock, poultry, ruminant feed processing equipment, premix processing equipment, concentrate processing equipment, etc. to suit the customer development vision.

The GEMCO feed mill plant for poultry fully considers the characteristics of raw materials, and the different combinations of various processes are only to provide you with better services.
